| MODEL |

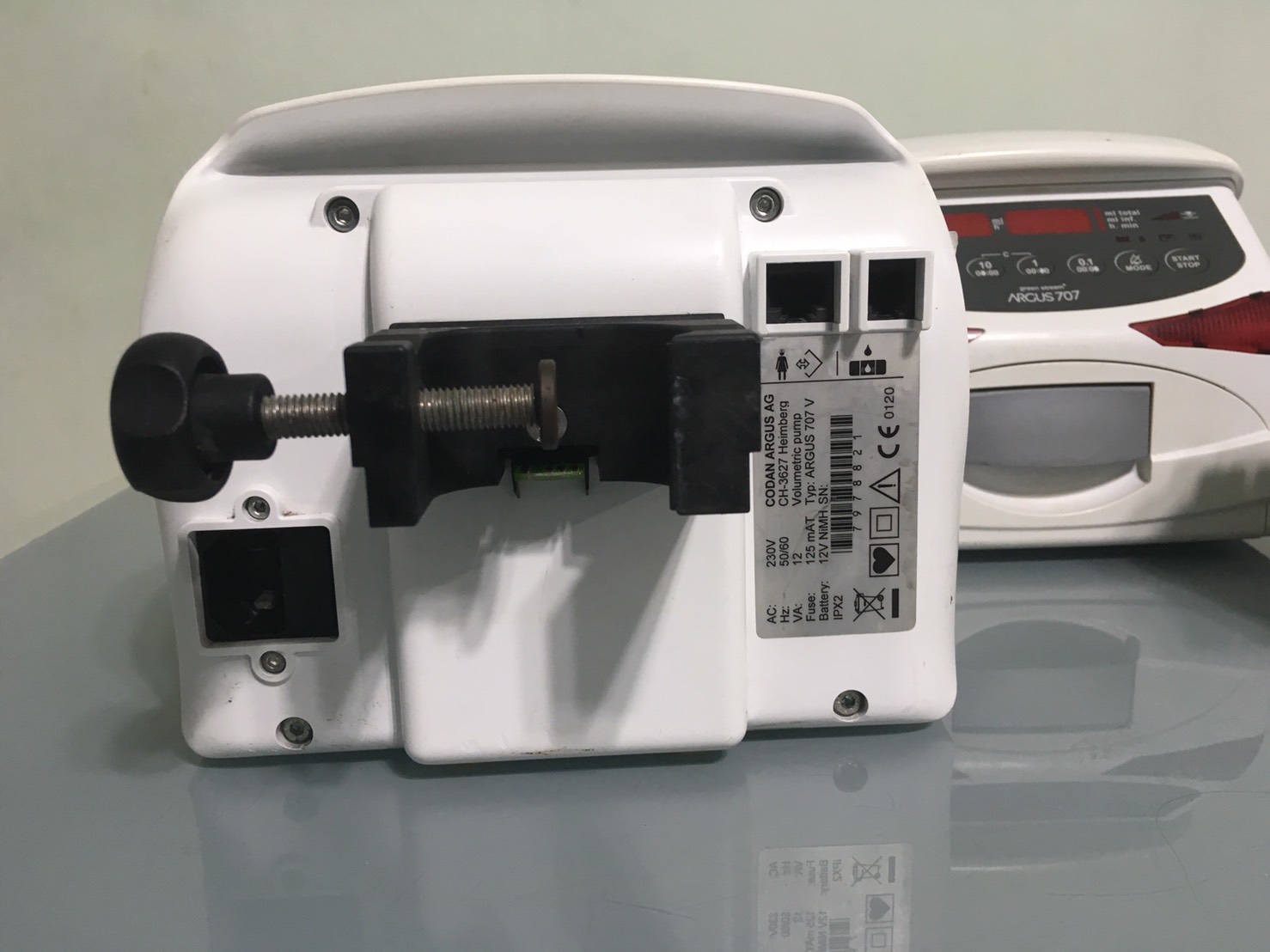

ARGUS 707 V |
| AUTOMATIC PIGGYBACKING |
Yes |
| PHYSICAL FEATURES |
|
| DIMENSIONS |
16 x 19 x 13 (6.3 x 7.4 x 5.1) |
| WEIGHT, kg |
2 (4.5) |
| Number of channels |
2 (4.5) |
| KVO RATE, mL/hr |
0 or 0.1-3 |
| FLOW RANGE, mL/hr |
0.1-1,200 |
| POWER NEEDED, VAC |
195-253 or 95-135 |
| Life, hr @ flow |
5 @ 25 |
| Frequency, hz |
50/60 |
| Duration of recharge,hr |
16 |
| Battery type |
Ni-MH |
| EVENT LOG |
Yes |
| Number of events |
>400 |
| Events stored |
Settings, alarms, system errors, rate changes, configuration, others |
| PRINTOUT |
Yes |
| DISPLAY |
Yes |
| Time/date stamp |
Yes |
| FRONT-PANEL LOCKOUT |
Yes |
| MAX UNITS PER POLE |
User-configurable |
| FLUID RESISTANT |
Yes |
| AUDIBLE ALARM |
|
| Alarm pause |
1 min to 99 hr 59 min |
| VOLUME REGULATION |
Yes |
| IV SET |
|
| Kind of set |
Standard, PVC, non-DEHP, non-PVC |
| Needleless iv connection |
Yes |
| Free-flow safeguard |
Yes |
| Vol. of air-trapping |
0.05-2 mL, single bubble and/or accumulation over time (8-64 min) |
| ALERTS AND SIGNALS |
|
| Drop sensor |
Yes |
| Real-time display |
Yes |
| Infusion terminated |
Yes |
| Depleted fluid container |
Yes |
| Low battery |
Yes |
| Pressure, psi |
1.4-14.5, adjustable |
| Circuit failure |
Yes |
| Flow error |
Yes |
| Set disengaged |
Yes |
| Detection mechanism |
Selectable (10 levels) |
| Air in line |
Yes |
| Empty battery |
Yes |
| Occlusion downstream |
Yes |
| User prompts |
Yes |
| Door open |
Yes |
| Occlusion upstream |
Yes |
| PUMP SYSTEM |
Linear peristaltic |
| DATA PORT |
RS232 |
| NURSE CALL JACK |
Yes |
| Accuracy, % |
Yes |
| TOTAL VOLUME INFUSED DISPLAY, mL |
0.1-9,999 |
| VTBI SELECTOR, mL |
0.1-9,999 |
